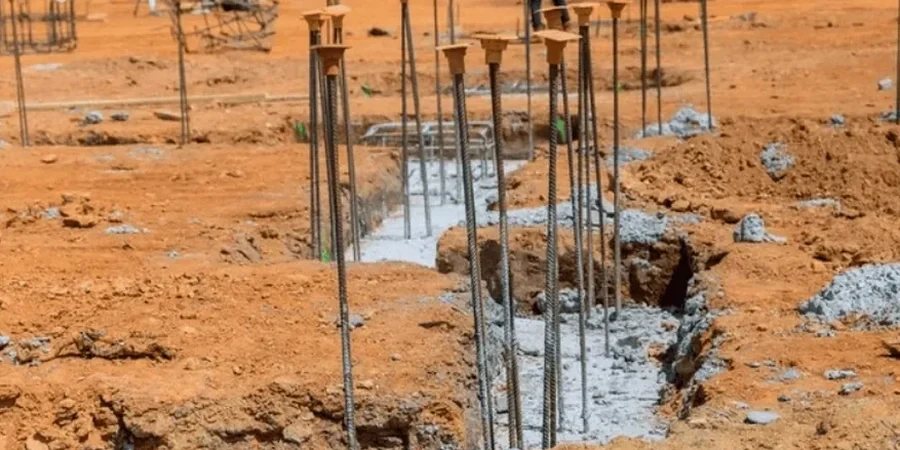

Pile Foundation Design in Wichita: Deep Foundations for the Arkansas River Basin

It depends entirely on the site's location relative to the Arkansas River and its tributaries. In west Wichita, we often encounter shale at 15 to 25 feet below grade. Along the river corridor and in parts of south Wichita, the alluvium can extend to 40 feet or more before reaching competent shale. Each site requires borings to confirm the depth to bedrock. We never estimate this from nearby projects because the shale surface in Sedgwick County is irregular, with paleo-channels that can drop the refusal depth by 15 feet over a short distance.

Driven H-piles and drilled shafts both work well when designed for the specific conditions. H-piles can be driven to shale refusal efficiently and develop good end-bearing. For sites with very stiff expansive clays in the upper zone, we sometimes recommend drilled shafts with the upper portion isolated from the soil using a permanent casing or void form to eliminate uplift forces from clay heave. The choice depends on the structural loads, access constraints, and the thickness of the expansive layer.

For a typical commercial building project in Wichita, the geotechnical investigation and pile foundation design report generally runs between US$1,610 and US$6,140 depending on the number of borings, depth of exploration, and complexity of the analysis. Projects requiring dynamic testing or static load tests will be at the upper end of that range. We provide a fixed-scope proposal after reviewing the structural loads and site location.

Seismic demand in Wichita is moderate, but soft soil amplification on Site Class D and E profiles can increase the design base shear. ASCE 7-22 requires that piles in these site classes be designed for kinematic interaction, particularly at the interface between soft alluvium and stiff shale. We include lateral pile analysis under seismic loading and check for liquefaction potential in saturated sandy layers. While full liquefaction is rare in the Wichita area, loose sand lenses near the river can trigger a Site Class E classification that affects the entire structural design.
